Revolving Nozzle
@ Ksh #
Rating 4.8 | 36 Comments
-
Essential Safety Tools for Every Space
-
Description:

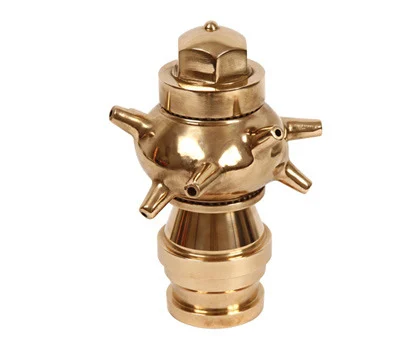

The Revolving Nozzle is generally used to protect the fixed roof storage tank top and for many other applications.
The nozzle starts rotating at 2 bar water pressure.
The nozzle is of bronze construction with stainless steel ball bearing.
It covers about 10 diameters area at 2 Bar.
Specification:
| 1 | Cast bronze construction |
|---|---|
| 2 | Size: 65, 80 or 100 mm flanged (2.5″, 3″ or 4″) |
| 3 | Working pressure 2.0 to 12.0 bar (30 to 175 psi) |
| 4 | Flow at 2 bar 285 to 950 lpm |
| 5 | overage : 10 metres in diameter at 2 bar (30 psi) |
